Unison "Link-Power" Cable

Unison \"Link-Power\" Cable
Unison \"Link-Power\" Cable
Unison \"Link-Power\" Cable
Eurocable

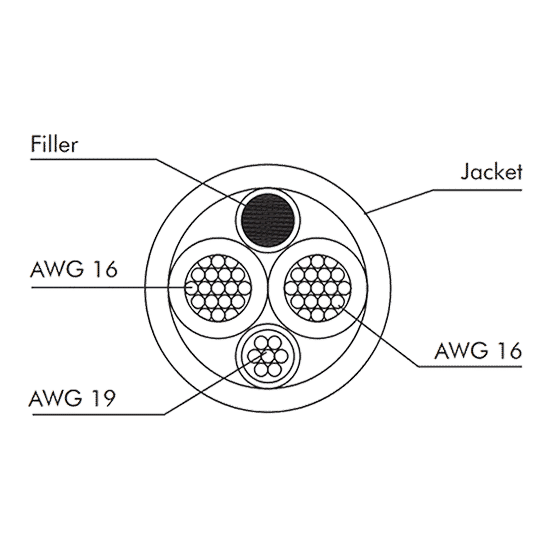

The Unison "Link-Power" cable carries the protocol used in ETC's Unison Control Stations. Link Power allows topology free and polarity independent wiring. This allows the installer to wire control stations in any configuration: star, bus, loop or any combination. The Unison "Link-Power" cable was specifically designed to provide all conductors necessary to support Link Power.
1E00475
CVSLKULP
Usually ships in: One week
  • 0Units in Stock:
loading
UM: Metres

Features

Additional information

Downloads

Related products

Contact an expert

  • Designed for ETC's Unison Control Stations
  • Topology free and polarity independent wiring
  • Designed to provide all conductors necessary to support Link Power

● Additional information

General Data
Cable O.D. (mm) 7.1
Signal Type Control, Control
Mechanical Data
Min Operating Temperature (°C) -20
Max Operating Temperature (°C) 70
Weight (Kg/100m) 16.90
Conductor
Area (mm²) 1.5
AWG 16

● Downloads

 DATASHEET.PDF
